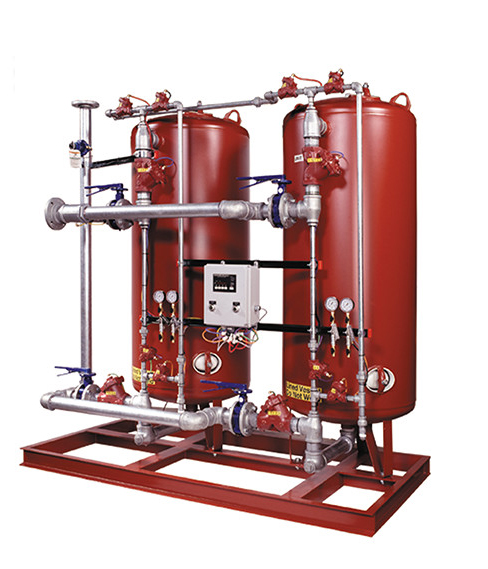

AquaMatic Easy Nest Kits
AquaMatic Easy Nest Kits provide a straightforward approach to water treatment, by incorporating the flexibility of Autotrol controllers and the robust design of the AquaMatic valves into a simple and effective valve nest.
This product is manufactured in the United States of foreign and domestic parts.
Features & Benefits
- AquaMatic Easy Nest Kits include diaphragm valves, control, pilot tubing, tubing fittings for the valve, injector (for softener system), and suggested application drawings for assembly of the unit
- No-hassle selection documentation for specifying, engineering and building the valve nest system
- Filter and softener configurations available
- Service flow rates: 80-1300 gpm (18-295 m3/h)* per tank
- Backwash flow rates: 35-392 gpm (8-89 m3/h) for a softener system* 35-1200 gpm (8-272 m3/h) for a filter system*
- All components can be serviced while the valve is in-line
- Unique Y-pattern design with large seat opening and high lift disc permits higher flow rates at lower pressure loss than other comparable valves
- Larger diaphragm area compared to seat area permits drip-tight closing without any springs
- Pre-formed, stress-relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime
- Diaphragm acts as an actuator, eliminating the need for electric or pneumatic actuator
Options
- Available in either composite or metal valve configurations
- Electronic 962 stager control
